SOLIDWORKS Electrical API 2024.0.0
Electrical API
Public Member Functions | List of all members
IEwSymbolX Interface Reference

Use this interface to manage a symbol. More...

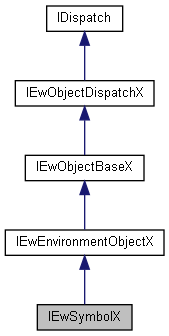

Inheritance diagram for IEwSymbolX:
Inheritance graph

Public Member Functions

IEwSymbolCircuitX addEwSymbolCircuit (BSTR strCircuitCode, EwErrorCode *errorCode)
 Create and add a circuit in the symbol. More...

EwErrorCode deleteEwSymbolCircuitAt (LONG index)
 Delete a circuit from the symbol. More...

LONG getEwSymbolCircuitCount ()
 Count the number of circuit in this symbol. More...

IEwSymbolCircuitX getEwSymbolCircuitAt (LONG index, EwErrorCode *errorCode)
 Get a circuit inside the symbol. More...

BSTR getDescription (BSTR lgCode, EwErrorCode *errorCode)
 Get a description of the symbol. More...

EwErrorCode setDescription (BSTR lgCode, BSTR strValue)
 Set a description of the symbol. More...

LONG getID (EwErrorCode *errorCode)
 Get ID of the symbol. More...

BSTR getReference (EwErrorCode *errorCode)
 Get the reference of the symbol. More...

EwErrorCode setReference (BSTR strReference)
 Set the reference of the symbol. More...

BSTR getManufacturer (EwErrorCode *errorCode)
 Get the manufacturer of the symbol. More...

EwErrorCode setManufacturer (BSTR strManufacturer)
 Set the manufacturer of the symbol. More...

LONG getClassNodeID (EwErrorCode *errorCode)

EwErrorCode setClassNodeID (LONG lNodeId)

BSTR getLibraryCode (EwErrorCode *errorCode)

EwErrorCode setLibraryCode (BSTR strLibraryCode)
 Set the library code of the symbol. More...

BSTR getRootMark (EwErrorCode *errorCode)
 Get the root mark of the symbol. More...

EwErrorCode setRootMark (BSTR strRootMark)
 Set the root mark of the symbol. More...

BSTR getName (EwErrorCode *errorCode)
 Get the name of the symbol. More...

EwErrorCode setName (BSTR strSymbolName)
 Set the name of the symbol. More...

EwSymbolType getEwSymbolType (EwErrorCode *errorCode)
 Get the type of the symbol. More...

EwErrorCode setEwSymbolType (EwSymbolType eSymbolType)
 Set the type of the symbol. More...

EwMeasurementType getEwMeasurementType (EwErrorCode *errorCode)
 Return the measurement type of the symbol. More...

EwErrorCode setEwMeasurementType (EwMeasurementType eMeasurementType)
 Set the measurement type of the symbol. More...

EwSymbolCrossRefType getEwSymbolCrossRefType (EwErrorCode *errorCode)
 Return the cross reference type of the symbol. More...

EwErrorCode setEwSymbolCrossRefType (EwSymbolCrossRefType eSymbolCrossRefType)
 Set the cross reference type of the symbol. More...

BSTR getAssociatedMacro (EwErrorCode *errorCode)
 Return the associated macro of the symbol. More...

EwErrorCode setAssociatedMacro (BSTR strAssociatedMacro)
 Set the associated macro of the symbol. More...

BSTR getStandard (EwErrorCode *errorCode)
 Get the standard of the symbol. More...

EwErrorCode setStandard (BSTR strStandard)
 Set the standard of the symbol. More...

VARIANT_BOOL isConnectionPointVisible (EwErrorCode *errorCode)
 Check if connection point are displayed. More...

EwErrorCode showConnectionPoint (VARIANT_BOOL bVisible)
 Show connection point. More...

EwErrorCode getDoNotRotateAttributes (VARIANT_BOOL *bRotate)
 Get value of option "Do not rotate attributes". More...

EwErrorCode setDoNotRotateAttributes (VARIANT_BOOL bRotate)
 Set value of option "Do not rotate attributes". More...

EwErrorCode insertFromDwg (BSTR strDwgFilePath)
 Insert the object inside the current environment. More...

BOOL isAlreadyOpened (EwErrorCode *errorCode)
 Check if the drawing is already opened. More...

IEwSymbolPointX addEwSymbolPoint (EwErrorCode *errorCode)
 Create and add a connection point for the symbol. More...

EwErrorCode deleteEwSymbolPoint (LONG index)
 Delete a connection point from the symbol. More...

LONG getEwSymbolPointCount ()
 Count the number of connection point in the symbol. More...

IEwSymbolPointX getEwSymbolPointAt (LONG index, EwErrorCode *errorCode)
 Get a connection point inside the symbol. More...

IEwClassificationX getClassification (EwErrorCode *errorCode)
 Get the classification of the current symbol. More...

LONG getClassID (EwErrorCode *errorCode)
 Get the class ID of current symbol. More...

EwErrorCode setClassID (LONG lID)
 Set the class ID of this current symbol. More...

IEwSymbolX duplicate (EwErrorCode *errorCode)
 Duplicate current symbol. More...

- Public Member Functions inherited from IEwEnvironmentObjectX
DATE getCreationDate (EwErrorCode *errorCode)
 Get the creation date of the current object. More...

DATE getModificationDate (EwErrorCode *errorCode)
 Get the last modification date of the current object. More...

EwCreatorType getEwCreatorType (EwErrorCode *errorCode)
 Get the creator of the current object. More...

BSTR getModifiedBy (EwErrorCode *eErrorCode)
 Get the last user name that modified the current object. More...

BSTR getCreatedBy (EwErrorCode *eErrorCode)
 Get the user name that created the current object. More...

EwErrorCode setTranslatedData (LONG nUserDataNumber, BSTR strLanguage, BSTR strValue)
 Set the value of a translated text. More...

BSTR getTranslatedData (LONG nUserDataNumber, BSTR strLanguage, EwErrorCode *errorCode)
 Get the value of a translated text. More...

- Public Member Functions inherited from IEwObjectBaseX
EwErrorCode insert ()
 Insert the object inside the current project. More...

EwErrorCode remove ()
 Remove the object from the current project. More...

EwErrorCode update ()
 Update the object inside the current project. More...


Detailed Description

Use this interface to manage a symbol.

Since
2018 SP0

Member Function Documentation

◆ addEwSymbolCircuit()

IEwSymbolCircuitX IEwSymbolX::addEwSymbolCircuit ( BSTR  strCircuitCode,
EwErrorCode *  errorCode
)

Create and add a circuit in the symbol.

Parameters
[in]strCircuitCodeThe type of circuit
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
The cable core and added

◆ addEwSymbolPoint()

IEwSymbolPointX IEwSymbolX::addEwSymbolPoint ( EwErrorCode *  errorCode)

Create and add a connection point for the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
The connection point created and added

◆ deleteEwSymbolCircuitAt()

EwErrorCode IEwSymbolX::deleteEwSymbolCircuitAt ( LONG  index)

Delete a circuit from the symbol.

Parameters
[in]indexThe index of circuit you want to delete
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if index is not valid

◆ deleteEwSymbolPoint()

EwErrorCode IEwSymbolX::deleteEwSymbolPoint ( LONG  index)

Delete a connection point from the symbol.

Parameters
[in]indexThe index of connection point you want to delete
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if index is not valid

◆ duplicate()

IEwSymbolX IEwSymbolX::duplicate ( EwErrorCode *  errorCode)

Duplicate current symbol.

Warning
The duplicate object must call insert to be save.
Since
2023 SP1
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_OBJECT_NOT_FOUND impossible to duplicate
  • EW_NO_ERROR if no error detected
Returns
a copy of current symbol.

◆ getAssociatedMacro()

BSTR IEwSymbolX::getAssociatedMacro ( EwErrorCode *  errorCode)

Return the associated macro of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the associated macro

◆ getClassID()

LONG IEwSymbolX::getClassID ( EwErrorCode *  errorCode)

Get the class ID of current symbol.

Since
2023 SP0 -1 Unknown class, not initialized. -2 Unclassified elements, Minimum valid value.
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Returns
the ID of symbol.

◆ getClassification()

IEwClassificationX IEwSymbolX::getClassification ( EwErrorCode *  errorCode)

Get the classification of the current symbol.

Since
2022 SP0 param[out] errorCode EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_OBJECT_NOT_FOUND classification not found
  • EW_INVALID_OBJECT if project symbol is invalid
Returns
EwAdClassification of project symbol

◆ getClassNodeID()

LONG IEwSymbolX::getClassNodeID ( EwErrorCode *  errorCode)
Warning
This interface is deprecated, use getClassID instead. Get the classification node ID of the symbol
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the classification node id

◆ getDescription()

BSTR IEwSymbolX::getDescription ( BSTR  lgCode,
EwErrorCode *  errorCode
)

Get a description of the symbol.

Parameters
[in]lgCodeThe language of the description you want to get (like 'en' for english or 'fr' for french )
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if lgCode is not valid
Returns
will contain the description in the symbol

◆ getDoNotRotateAttributes()

EwErrorCode IEwSymbolX::getDoNotRotateAttributes ( VARIANT_BOOL *  bRotate)

Get value of option "Do not rotate attributes".

Parameters
[out]bRotateTrue if rotate is disable
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ getEwMeasurementType()

EwMeasurementType IEwSymbolX::getEwMeasurementType ( EwErrorCode *  errorCode)

Return the measurement type of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
the measurement type

◆ getEwSymbolCircuitAt()

IEwSymbolCircuitX IEwSymbolX::getEwSymbolCircuitAt ( LONG  index,
EwErrorCode *  errorCode
)

Get a circuit inside the symbol.

Parameters
[in]indexThe index of circuit you want to get
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if index is not valid
Returns
The circuit

◆ getEwSymbolCircuitCount()

LONG IEwSymbolX::getEwSymbolCircuitCount ( )

Count the number of circuit in this symbol.

Returns
The number of circuit or -1 if this object was not initialized

◆ getEwSymbolCrossRefType()

EwSymbolCrossRefType IEwSymbolX::getEwSymbolCrossRefType ( EwErrorCode *  errorCode)

Return the cross reference type of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the cross reference type

◆ getEwSymbolPointAt()

IEwSymbolPointX IEwSymbolX::getEwSymbolPointAt ( LONG  index,
EwErrorCode *  errorCode
)

Get a connection point inside the symbol.

Parameters
[in]indexThe index of connection point you want to get
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if index is not valid
Returns
The connection point

◆ getEwSymbolPointCount()

LONG IEwSymbolX::getEwSymbolPointCount ( )

Count the number of connection point in the symbol.

Returns
The number of terminal or -1 if the object was not initialized

◆ getEwSymbolType()

EwSymbolType IEwSymbolX::getEwSymbolType ( EwErrorCode *  errorCode)

Get the type of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the symbol type

◆ getID()

LONG IEwSymbolX::getID ( EwErrorCode *  errorCode)

Get ID of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the ID of the symbol

◆ getLibraryCode()

BSTR IEwSymbolX::getLibraryCode ( EwErrorCode *  errorCode)
Warning
This interface is deprecated , use setClassID instead Get the library code of the symbol
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the library code

◆ getManufacturer()

BSTR IEwSymbolX::getManufacturer ( EwErrorCode *  errorCode)

Get the manufacturer of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the symbol

◆ getName()

BSTR IEwSymbolX::getName ( EwErrorCode *  errorCode)

Get the name of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the symbol name

◆ getReference()

BSTR IEwSymbolX::getReference ( EwErrorCode *  errorCode)

Get the reference of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the symbol

◆ getRootMark()

BSTR IEwSymbolX::getRootMark ( EwErrorCode *  errorCode)

Get the root mark of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the root mark

◆ getStandard()

BSTR IEwSymbolX::getStandard ( EwErrorCode *  errorCode)

Get the standard of the symbol.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
will contain the standard

◆ insertFromDwg()

EwErrorCode IEwSymbolX::insertFromDwg ( BSTR  strDwgFilePath)

Insert the object inside the current environment.

Based on an external DWG.

Parameters
[in]strDwgFilePathPath to the dwg file
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_NAME if the file title is empty
  • EW_FILE_NOT_FOUND if strDwgFilePath is not found
  • EW_CAN_NOT_WRITE if impossible to copy strDwgFilePath
  • EW_INSERTION_FAILED if the insertion failed
  • EW_OBJECT_ALREADY_INSERTED if the object already exists

◆ isAlreadyOpened()

BOOL IEwSymbolX::isAlreadyOpened ( EwErrorCode *  errorCode)

Check if the drawing is already opened.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
True if the drawing is already opened else false

◆ isConnectionPointVisible()

VARIANT_BOOL IEwSymbolX::isConnectionPointVisible ( EwErrorCode *  errorCode)

Check if connection point are displayed.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
True if visible else FALSE

◆ setAssociatedMacro()

EwErrorCode IEwSymbolX::setAssociatedMacro ( BSTR  strAssociatedMacro)

Set the associated macro of the symbol.

Parameters
[in]strAssociatedMacroThe associated macro you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setClassID()

EwErrorCode IEwSymbolX::setClassID ( LONG  lID)

Set the class ID of this current symbol.

Since
2023 SP0
Parameters
[in]lIDnew class you want to set
Returns
EwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_BAD_INPUTS no class found
  • EW_NO_ERROR if no error detected

◆ setClassNodeID()

EwErrorCode IEwSymbolX::setClassNodeID ( LONG  lNodeId)
Warning
This interface is deprecated, use setClassID instead. Set the classification node ID of the symbol
Parameters
[in]lNodeIdThe classification node id you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setDescription()

EwErrorCode IEwSymbolX::setDescription ( BSTR  lgCode,
BSTR  strValue
)

Set a description of the symbol.

Parameters
[in]lgCodeThe language of the description you want to set (like 'en' for english or 'fr' for french )
[in]strValueThe description you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if lgCode is not valid

◆ setDoNotRotateAttributes()

EwErrorCode IEwSymbolX::setDoNotRotateAttributes ( VARIANT_BOOL  bRotate)

Set value of option "Do not rotate attributes".

Parameters
[in]bRotateTrue if rotate is disable
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setEwMeasurementType()

EwErrorCode IEwSymbolX::setEwMeasurementType ( EwMeasurementType  eMeasurementType)

Set the measurement type of the symbol.

Parameters
[in]eMeasurementTypeThe new measurement
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setEwSymbolCrossRefType()

EwErrorCode IEwSymbolX::setEwSymbolCrossRefType ( EwSymbolCrossRefType  eSymbolCrossRefType)

Set the cross reference type of the symbol.

Parameters
[in]eSymbolCrossRefTypeThe cross reference you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setEwSymbolType()

EwErrorCode IEwSymbolX::setEwSymbolType ( EwSymbolType  eSymbolType)

Set the type of the symbol.

Parameters
[in]eSymbolTypeThe type you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setLibraryCode()

EwErrorCode IEwSymbolX::setLibraryCode ( BSTR  strLibraryCode)

Set the library code of the symbol.

Parameters
[in]strLibraryCodeThe library code you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setManufacturer()

EwErrorCode IEwSymbolX::setManufacturer ( BSTR  strManufacturer)

Set the manufacturer of the symbol.

Parameters
[in]strManufacturerThe manufacturer you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setName()

EwErrorCode IEwSymbolX::setName ( BSTR  strSymbolName)

Set the name of the symbol.

Parameters
[in]strSymbolNameThe name you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if forbidden characters ("*,/:;<=>?`|¦) in name or empty

◆ setReference()

EwErrorCode IEwSymbolX::setReference ( BSTR  strReference)

Set the reference of the symbol.

Parameters
[in]strReferenceThe reference you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setRootMark()

EwErrorCode IEwSymbolX::setRootMark ( BSTR  strRootMark)

Set the root mark of the symbol.

Parameters
[in]strRootMarkThe root mark you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setStandard()

EwErrorCode IEwSymbolX::setStandard ( BSTR  strStandard)

Set the standard of the symbol.

Parameters
[in]strStandardThe standard you want to set
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ showConnectionPoint()

EwErrorCode IEwSymbolX::showConnectionPoint ( VARIANT_BOOL  bVisible)

Show connection point.

Parameters
[in]bVisibleTrue if visible else FALSE
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Generated on Mon Aug 28 2023 13:39:21 for SOLIDWORKS Electrical API by doxygen 1.9.4


Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   SOLIDWORKS Electrical API: IEwSymbolX Interface Reference
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:

x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2024 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.

0.20.21
