Every wire placed on the schematic can be cabled, provided that it is
connected to a symbol or terminal.
-
To open the cabling command, right-click a wire and click Associate cable
cores.
The cabling command is activated on a multiselection of wires. This interface is
similar to the cable management.
-
To Associate cable cores
, do the following:
-
Select the cores in the upper half of the dialog box.
-
Select the wire to cable in the lower section.
The cable cores are associated in order of appearance. The first core on the
list is allocated to the first wire on the list, the second core to the
second wire, and so on.
Organize the list of wires according to the list of cores.
| Color |
Description |
| Blue cable core (bold) |
Associated with a wire. |
| Green cable core (bold) |
Assigned to one of the selected wires. |
Bold means that the cable core is in a scheme. Non-bolded blue cable
cores are only in the line diagram.
-
To disassociate the cable cores, click Dissociate cable
core
.

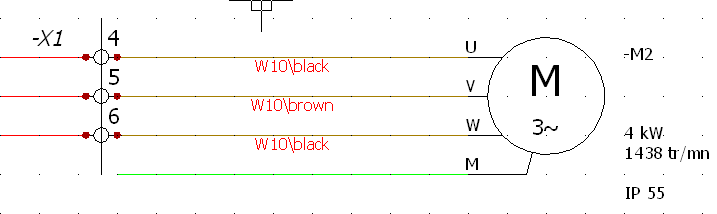

The cabling of the selected cores is deleted. After confirming your
changes, the schematic is updated automatically. A text corresponding to the
cable is automatically placed on the line. You can customize the text (style and
content) in the Text tab of electrical project properties.
