Filtering the FeatureManager Design Tree

The FeatureManager design tree filter lets you search for specific features of parts and components of assemblies.

To filter the FeatureManager design tree:

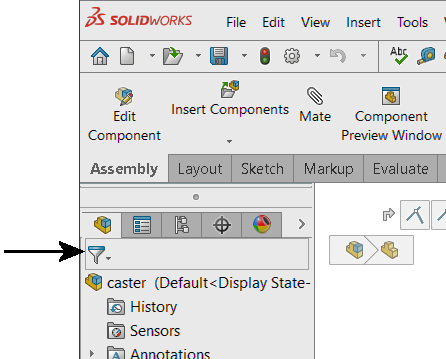

  1. At the top of the FeatureManager design tree, in the filter field , type a keyword to display the items you want to view.
    You can filter by:
    • Types of features
    • Feature names
    • Sketches
    • Folders
    • Mates
    • User-defined tags
    When you filter an assembly, you can also choose to:
    • Filter the graphics view
    • Filter hidden or suppressed components
  2. To redisplay all features, click in the filter field.


Filter text Finds
extr All items containing the string extr, such as extrude features
sens All items containing the string sens, including Sensors folders
ske All items containing the string ske, including sketches
