Corner Management

You can apply corner treatments manually or automatically.

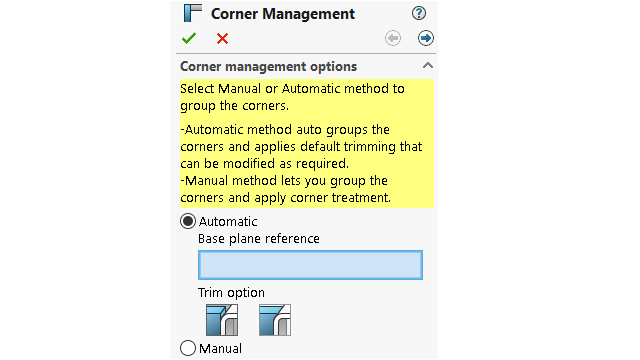

To open the Corner Management PropertyManager:

  1. Open a part and click Structure System > Primary Member.
  2. Create primary members and exit the structure system mode.
  3. In the PropertyManager, specify an option:
    • Automatic. Groups similar corners and applies the corner treatment.
    • Manual. Lets you group similar corners and apply the corner treatment.
  4. Select Automatic.
    SOLIDWORKS selects a plane that determines the trim order of members. You can then modify the base plane reference, groups, and corner treatment, if required.
  5. Specify a Trim option.
  6. Click Next to continue with the corner treatment.
