Two Member PropertyManager

The user interface of the Two Member PropertyManager is enhanced.

Enhancements include:

  • Changes to trim types and trim options under Corner Treatment. You can select one of the following trim types:
    Icon Trim type Trim options
    End Butt1 Planar Trim or Body Trim
    End Butt2 Planar Trim or Body Trim
    Miter Trim
    Open Corner First contact planar trim or Full contact planar trim
  • You can use the End Butt1 and End Butt2 trim options for swapping. Previously, you could swap the tool and body to trim using the arrows .


  • Updated icons:
    Icon Trim Option
    Planar Trim
    Body Trim
    Miter Trim

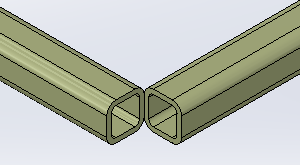

  • Open corner . Trims both members and creates an open corner.

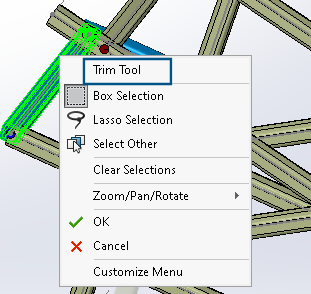

  • The Trim Tool shortcut menu is available in the graphics area. It lets you swap the member to trim.

  • In the PropertyManager, for Trim Tool, you can select Automatic or User Defined. The User Defined option lets you select a face or a plane to trim.
