The
Complex Corner PropertyManager provides enhanced
Corner Treatment options. Also, you can create and
edit the structure system
more
easily.
Complex Corner PropertyManager
To open this PropertyManager:
- Open a model that includes three or more intersecting
members.
- In the
FeatureManager® design tree, expand
Corner Management
.
- Right-click Complex Corner
Group and select Edit
Feature.
Enhancements include:

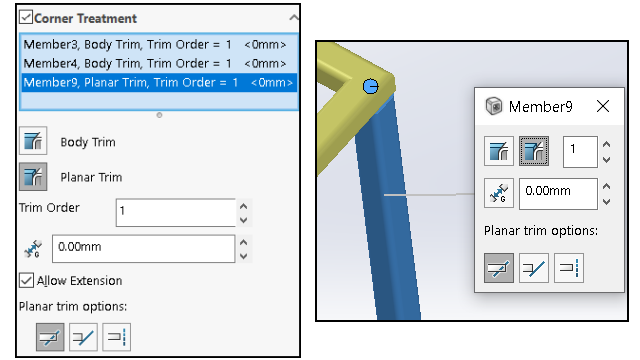

- Under Corner
Treatment, the members box displays body trim members and
planar trim members. You can select a member and click Body Trim or Planar Trim to change its trim type.
- Details of the selected member, such as body trim, planar
trim, and trim order appear as callouts in the graphics area.
- Icons represent planar trim options.
Access to Structure System
Enhancements include:
- When you open a structure system model, SOLIDWORKS displays
a message to activate the Structure
System tab.
- For
new
files,
the
CommandManager
displays Create Structure System.
When you click Create Structure
System, SOLIDWORKS displays Primary
Member PropertyManager.
- For
files
that
include
a structure system, the
CommandManager
displays Edit Structure System.
- For
files
that
include
multiple structure systems, you must select the structure system to edit
from the FeatureManager design tree.
