You can use the
AM_SIMPLEWELD command to create and customize
fillet welds and single-V butt welds on various entities, including ellipses, circles,
arcs, lines, and
polylines.
This
command
supports

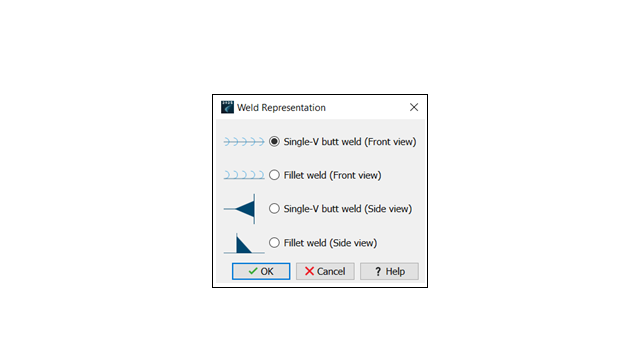

front-view and side-view weld representations, offering precise control and flexibility
in defining welding details.
It
simplifies the process of creating weld symbols, enhances productivity, and ensures
compliance with industry standards. The
command:
- Offers precise control over weld dimensions, leg widths, and symbol
placement.
- Lets you edit weld properties with the
AM_SIMPLEWELDEDIT command or directly through
Properties
Palette.
