You can save SOLIDWORKS Inspection files to the 3DEXPERIENCE® platform using
bookmarks.
To save
SOLIDWORKS Inspection files using bookmarks:
- Open
a
project or create a new
project,
and from MySession,
right-click
the file and click Save.

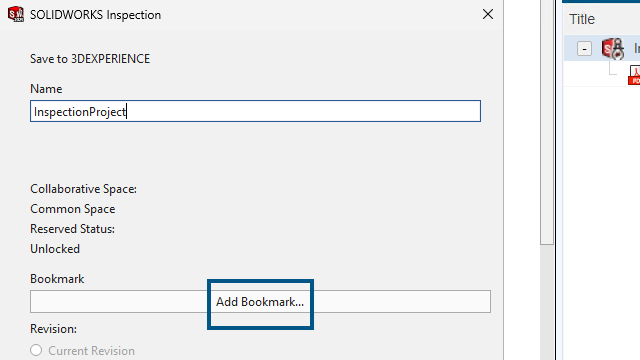

- In the
Save to 3DEXPERIENCE dialog box,
click
Add
Bookmark.
- In
the Bookmark Editor,
right-click
Bookmarks and select New Bookmark.
- In
the New Bookmark
window, for
Title enter a name for the bookmark and
click Create.
- Select the
new
bookmark.
- Specify an option and click Apply.
- Add Existing.
Adds
the
newly
created bookmark to existing bookmarks.
- Upload file.
Uploads
an existing file.
- To save the
bookmark to the 3DEXPERIENCE platform,
click Save.
