You can
rename
notes and dimensions in annotations with specific titles instead of
generic names
like
note1 and
note2.
To rename the notes and dimensions in annotations:

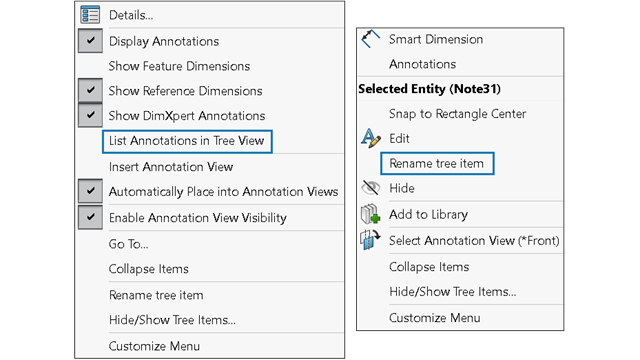

- In the FeatureManager design tree, right-click Annotations and select List
Annotations in Tree
View.
- Do one of the following:
- Right-click a note or dimension and select
Rename tree item
- Select a note or dimension and press F2.
- Type the name and then
click
the graphics area.
The
name can include letters, numbers, and special
characters.
