Description of the Problem

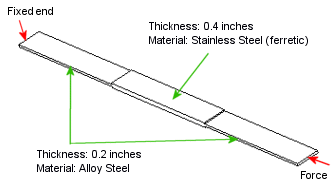

Three rectangular plates 10” x 2” are connected as shown in the figure. The central plate has a thickness of 0.4”. Each of the other two plates has a thickness of 0.2”.
