Animating the Stress Plot

In the Simulation study tree, right-click the active stress plot icon and select Animate.
The animation starts automatically.

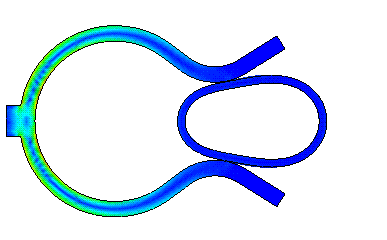

Click this animation to play it or to reset it.
Under Basics, click to stop the animation.
Click .

Congratulations! You have completed this lesson.
