Meshing the Model and Running the Study

To mesh the model and run the study:

In the Simulation study tree, right-click Mesh and select Create Mesh .

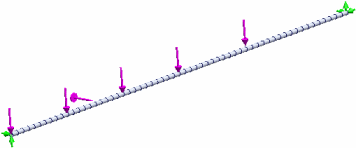

Notice that each beam is divided into a number of beam elements.
In the Simulation study tree, right-click the study and select Run .
