Setting the Result Options

Here you specify the locations where you want the analysis results to be saved for all solution steps and the solution steps at which the results are to be saved for all nodes.

1. In the Simulation study tree, right-click the Result Options icon and select Define/Edit.
2. In the PropertyManager:
   1. Under Save Results, select For specified solution steps.
   2. Check the Solution Steps - Set1 box and do the following:
      • Make sure that Start is set to 1.
      • Type 100 for End.
      • Type 1 for Increment.
   3. Under Response Plots, select <Ready - Large Deformation> - Nonlinear in Sensor List .

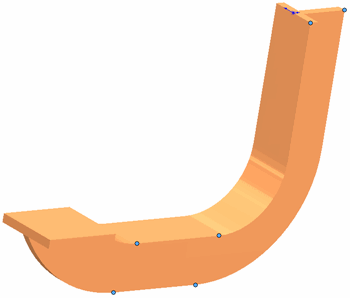

      The program selects the vertices shown in the following figure.

3. Click .
