Viewing Displacement

In the Simulation study tree, right-click the Results folder and select Define Displacement Plot .
In the PropertyManager, under Display:
1. Select URES: Resultant Displacement in Component .
2. Select in for Units .
Under Deformed shape, select True Scale.
Click .

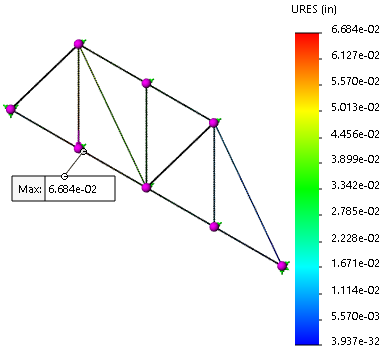

The maximum displacement of 0.066 inches occurs on the joint where the load is applied.
