Viewing Results

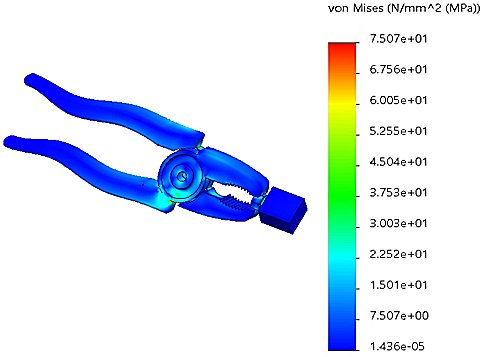

To view the von Mises stress plot:

In the Simulation study tree, open the Results folder.
Double-click Stress1 (-vonMises-) to display the plot.
If the plot does not exist, create this plot.

The von Mises stress values are shown in MPa.

Congratulations! You have completed this lesson.
