Viewing the Temperature Profile

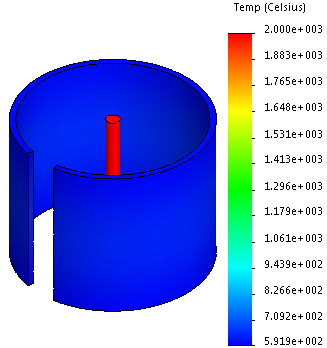

You view the temperature profile at the last time step (i.e., after 1200 seconds).

To view temperatures:

  1. In the Simulation study tree, open the Results folder.
  2. Double-click Thermal1 (-Temperature-) to display the plot.
    If the plot does not exist, create this plot.

    As the results show, the shield temperature is well below the melting temperature of the AISI 304.
