Assessing the Safety of the Design

The Factor of Safety wizard helps you assess the safety of your design.

1. In the Simulation study tree, right-click the Results folder and select Define Factor of Safety Plot.
   The Factor of Safety PropertyManager appears.
2. In the PropertyManager, under Step 1 of 3, select Max von Mises Stress in Criterion .
3. Click Next .
4. Under Step 2 of 3, select Yield strength.
5. Click Next .

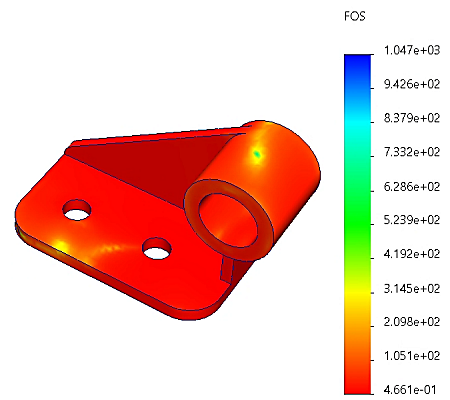

6. Under Step 3 of 3, select Factor of safety distribution.
7. Click .
