Viewing Fatigue Results

  1. Right-click the Results folder and click Define Matrix Chart.
  2. In the Matrix Charts PropertyManager, do the following:
    1. Under Location, select Worst damage location.
    2. Under Type, select Rainflow matrix.
    3. Click .

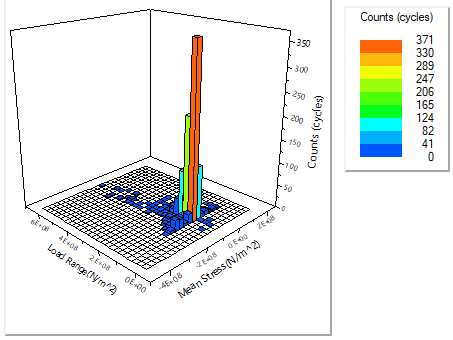

    The following plot is displayed for the node with the worst damage location.

  3. Right-click the Results folder and click Define Matrix Chart.
  4. In the Matrix Charts PropertyManager, do the following:
    1. Under Location, select Worst damage location.
    2. Under Type, select Damage matrix.
    3. Click .

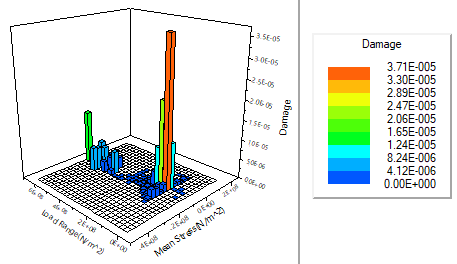

    The following plot is displayed for the node with the worst damage location.

Congratulations! You have completed this lesson.
