Viewing Stress Results

In the Simulation study tree, right-click the Results folder, and select Define Stress Plot.
In the PropertyManager:
1. Under Display, set Component to SX: X Normal Stress.
2. Set Units to N/mm^2 (MPa).
3. Under Plot Step, set Time to 1 second.
  A Time of 1 second corresponds to the full application of the prescribed displacement (7 mm).
4. In the Deformed shape box, make sure True scale is selected.
5. Click .

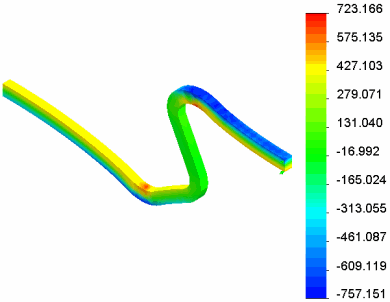

Stress2 (-X normal-) appears in the Results folder and appears in the graphics area.
