Applying Symmetry Restraints

You apply symmetry restraints on the faces of symmetry of the model.

1. In the Simulation study tree, right-click Fixtures and click Advanced Fixtures.
2. In the PropertyManager, under Advanced (Use Reference Geometry):
   1. Click Symmetry.

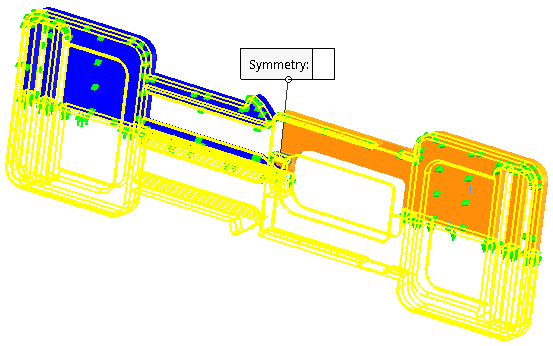

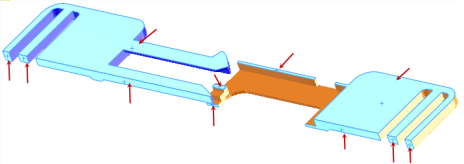

   2. In the graphics area, select the faces shown in the figure (11 faces).


      Once you select all symmetry faces, you see a rendering of the full model.


3. Click .
