Plotting Resultant Displacement

Right-click the Results folder and select Define Displacement Plot.
In the PropertyManager, under Display:
1. Make sure that URES: Resultant Displacement is selected for Component .
2. Select cm for Units .
Under Plot Step, make sure that Plot Step is set to 10.
In Property, check Associate plot with name view orientation and select *Front from the menu.
Click .

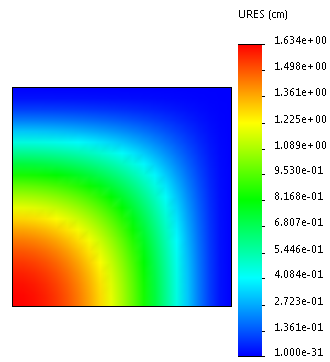

The following plot is displayed.
