Running Fatigue Analysis and Viewing Damage Results

Right-click the TopFace study and select Run.
Notice that the program creates a Results folder where fatigue result plots are created.
Right-click the Results folder and select Define Fatigue Plot .
In the PropertyManager:
1. Under Plot Type, select Damage.
2. Click .

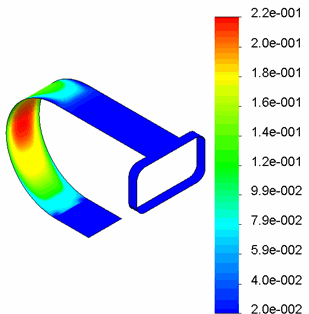

  The Damage plot is displayed.

  This plot shows that the sequence of fatigue events is expected to consume 0.22% of the life of the ride-on.
