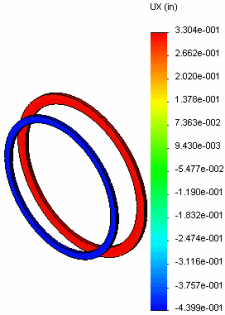

Viewing Radial Displacements

You view radial displacements with respect to the reference axis, Axis1.

In a cylindrical coordinate system defined by a reference axis, the UX displacement component refers to radial displacements.

In the Simulation study tree, right-click the Results folder and select Define Displacement Plot .
In the PropertyManager, under Display:
1. Select UX: X Displacement in Component .
2. Select in in Units .
Under Advanced Options, select Axis1 in the flyout FeatureManager design tree for Plane, Axis or Coordinate System .
Clear Deformed shape.
Click .
