Creating the Dimension Scheme

Click .
Inspect the dimensions by annotation view:

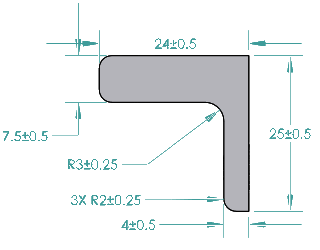

Front view	The instance count (`3x`) is part of the R2 radius dimension.
Right view	The instance count and chain dimensions are part of the 3X counterbore hole pattern.
Top view	The instance count and chain dimensions are part of the 2X counterbore hole pattern.

To choose between baseline and chain dimension schemes, click Options

(Standard toolbar). On the Document Properties tab, go to DimXpert > Chain Dimension.

Search 'Creating the Dimension Scheme' in the SOLIDWORKS Knowledge Base.
