Creating a Drawing from the Part

You can quickly generate a drawing from the dimensioned part:
  1. With the dimensioned part open, click File > Make Drawing from Part.
  2. In the Sheet Format/Size dialog box, select Standard sheet size and click OK.
  3. In the FeatureManager design tree, right-click Sheet1 and click Properties.
  4. On the Sheet Properties dialog box:
    1. Set Scale to 2 : 1.
    2. Under Type of projection, select Third angle.
    3. Under Sheet Format/Size, select Standard Sheet Size, clear Only show standard format, and then select C (ANSI) Landscape.
    4. Click Apply Changes.
  5. On the Task Pane, on the View Palette , under Options, select:
    • Import Annotations
    • DimXpert Annotations
    • Auto-start projected view

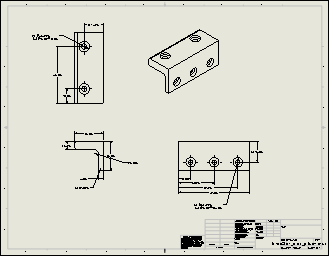

  6. Create the drawing:
    1. Drag the Front view from the Task Pane to the lower left corner of the drawing sheet .
    2. Move the cursor to the Front view, move the cursor up, and then click to place the Top view.
    3. Move the cursor to the Front view, move the cursor right, and then click to place the Right view.
    4. Move the cursor to the Front view, move the cursor up and to the right, and then click to place the Isometric view.
    5. Click .
