Creating the Dimension Scheme

Click .

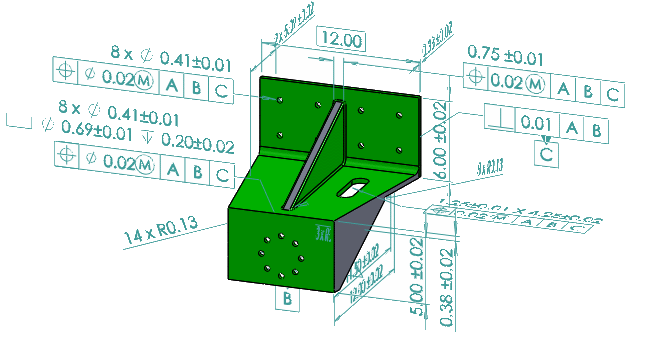

With Show Tolerance Status (MBD Dimensions toolbar) enabled, the entire model is green, indicating that the whole part is now fully toleranced.
Optional: Drag the dimensions to rearrange them for readability.
The part is now ready for use in TolAnalyst.

Congratulations! You have completed this tutorial.
