Combining Dimension Schemes

In this section, you use a combined automatic and manual scheme to fully define a part. When you have finished, the part will be ready for use in TolAnalyst.

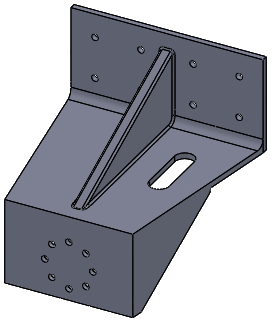

Open the sample part, Bracket_Auto_Manual.SLDPRT, to complete this section.

Browse to the folder where you downloaded the DimXpert tutorial sample files and open Bracket_Auto_Manual.SLDPRT.

Search 'Combining Dimension Schemes' in the SOLIDWORKS Knowledge Base.
