Adding Another Mate Between the Saddle and Knee

Click Mate (Assembly tab).
Click Keep Visible if it is not selected.

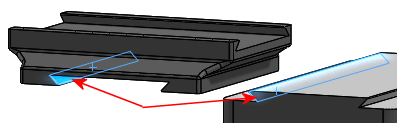

Select the corresponding angular faces on the saddle and knee as shown.
The Mate pop-up toolbar appears in the graphics area. Coincident is selected in the PropertyManager and the pop-up toolbar. A preview of the coincident mate appears.
Click Add/Finish Mate (Mate pop-up toolbar).
The selected angular faces are now mated.
