Reviewing the Mates

You can use the FeatureManager design tree to review the mates you added.

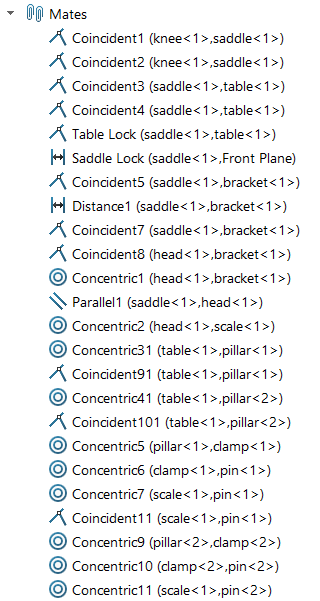

At the bottom of the FeatureManager design tree, expand Mates .
Each mate is identified by the type, instance number, and names of the components.
If you added or deleted mates, or selected mate components in a different order, the names of the mates in your assembly may differ from the mates shown here.
Hover over a mate in the FeatureManager design tree to see the relevant components highlight in the graphics area.
