Creating a Section View

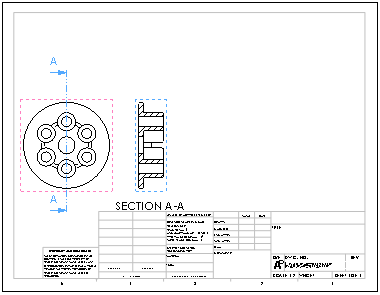

Create a section view through the center of the part.

  1. Click Section View on the Drawing tab.
  2. In the PropertyManager, under Cutting Line, click Vertical and select Auto-start section view.
  3. Move the pointer above the center point of the plate and click to start the section line.
  4. Move the pointer to the right to place the view and click to finish.
  5. Under Cutting Line, click Flip direction to reverse the direction of the section view.
  6. Click .
    You may notice that the fonts and section line do not match up exactly as depicted in this topic. You can customize these items in document properties.
