Modifying the Text of Dimensions

  1. Select the cylinder boss diameter (27) dimension.
  2. In the PropertyManager, under Dimension Text, click in front of <MOD-DIAM>.
  3. Type 6x.
    The dimension now indicates that there are six cylinders of the same size in the drawing.
  4. Repeat steps 1 through 3 for the cylinder boss hole diameter (15) dimension.
  5. Select the center hole diameter (25) dimension.
  6. In the PropertyManager, under Dimension Text, click after <DIM>.
  7. Type a space and THRU.

    The dimension now indicates a through all cut.

  8. Click .

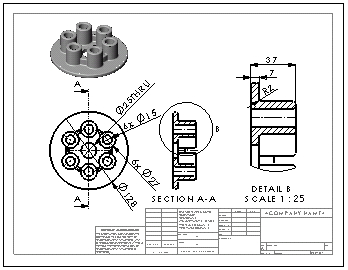

    This completes the drawing.

  9. Click File > Save to This PC.

Congratulations! You have completed this tutorial.
