After you sketch the sweep path, you need to sketch the sweep section.
-
Select the Right plane in
the FeatureManager design tree, then click Sketch
on the Sketch
tab
to open a new sketch.
-
Click Normal To
on the
Heads-up
View toolbar.
-
Click Ellipse
on the
Sketch
tab,
then sketch an ellipse anywhere in the graphics area.

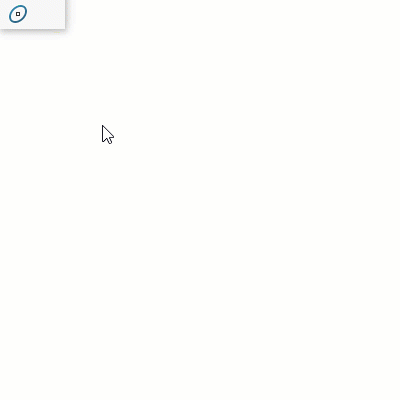

To sketch an ellipse, drag horizontally from the center
point of the ellipse to set the width of the ellipse, release the pointer,
then click and drag vertically to set the height.
Click this animation to play it or to reset it.
-
Click Select
on the
Standard toolbar, then hold down
Ctrl
and click the endpoints of the ellipse as shown.
-
In the PropertyManager, under Add
Relations, click Horizontal
,
then click OK
.
This relation ensures that the ellipse is not slanted.
- Dimension the ellipse as shown.
-
Click OK
.
