Simplified Interface

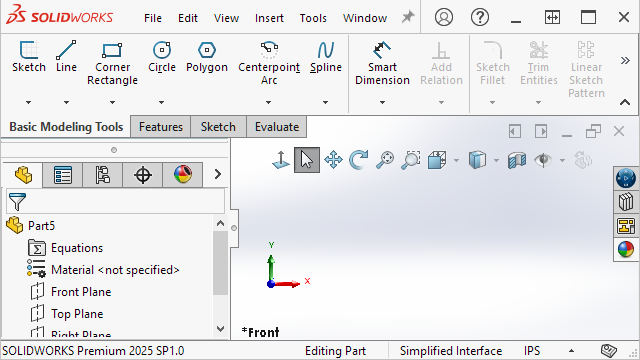

Simplified Interface is a workspace that presents the SOLIDWORKS window with an abridged user interface. The window includes basic user interface elements tailored to the type of document that you open.

With a document open, click View > Workspace > Simplified Interface.

Without a document open, click View > Simplified Interface.

When selected, the status bar indicates the Simplified Interface workspace.

If you use the Simplified Interface workspace, customize the interface for your needs, then turn off Simplified Interface, SOLIDWORKS saves any customizations that you made if you turn on Simplified Interface again.

Heads-Up View Toolbar

For parts and assemblies, the Heads-up View toolbar contains tools to manipulate views. It does not include appearances, scenes, or view settings.

Simplified interface	Default interface

CommandManager

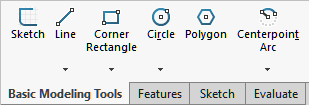

The CommandManager displays different tabs per document type. Included in the tabs are Basic Modeling Tools, Basic Assembly Tools, and Basic Drawing Tools which contain commonly used tools for those document types.

Simplified interface	Default interface

Task Pane

The Task Pane contains the following tabs:

• 3DEXPERIENCE
• Design Library
• View Palette
• Appearances, Scenes, and Decals

Simplified interface	Default interface

FeatureManager Design Tree

The FeatureManager design tree contains the following items:

• Equations
• Material
• Planes
• Origin

Simplified interface	Default interface

Items in the FeatureManager design tree do not include configuration or display state names if only one exists.

PropertyManagers

Several PropertyManagers contain collapsed sections:

Simplified interface	Default interface
