Synchronizing CircuitWorks Component Libraries between SOLIDWORKS and SOLIDWORKS Connected (2025 SP03)

You can synchronize CircuitWorks component libraries between SOLIDWORKS Desktop and SOLIDWORKS Connected to keep your libraries up to date.

Use the following steps to copy components in either direction:
  1. Go to Tools > CircuitWorks > Component Library. In CircuitWorks Component Library, select Tools.
  2. Do one of the following:

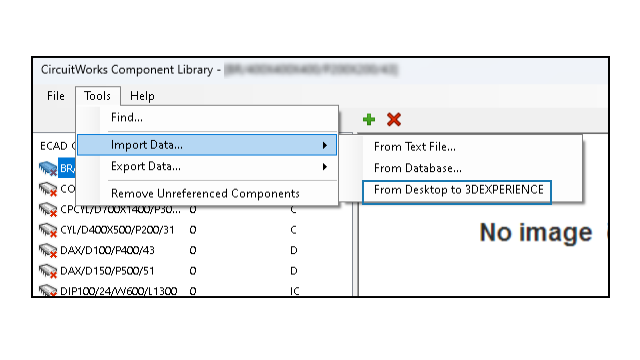

    • Select Import Data > From Desktop to 3DEXPERIENCE.
      This synchronizes the entire desktop component library with the 3DEXPERIENCE component library.
    • Select Export Data > From 3DEXPERIENCE to Desktop.
      This synchronizes the entire 3DEXPERIENCE component library with the desktop component library.
  3. Click Yes.
