The
user

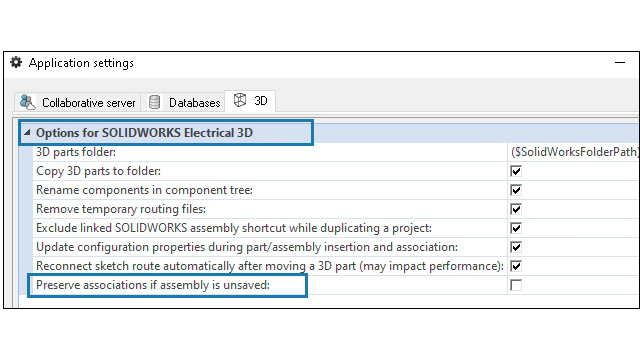

interface of the 3D tab in the
Application Settings dialog box has been
updated.
User
Interface
Update
A dynamic property list replaces
static check boxes.
The title Options for SOLIDWORKS Electrical 3D is added to improve the
organization of the options.
Preserve Association
Option
The Preserve
associations if assembly is unsaved option lets
you preserve associations between 3D components and electrical parts, even if you do
not save the SOLIDWORKS assembly.
Benefits: This option enhances workflow flexibility and prevents data
loss.
To
access this option, click
.
