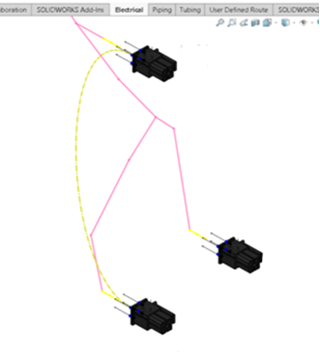

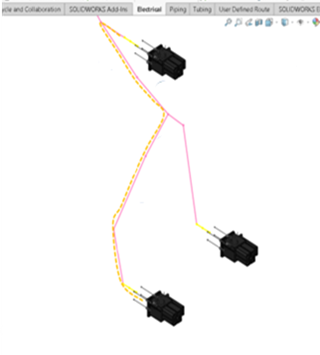

Redirecting Guidelines to Follow a Route Path In the Auto Route PropertyManager, you can redirect guidelines to follow a route path. The guidelines identify the nearest sketch segment that leads to the corresponding end connector and follow that path. Redirecting guidelines to follow a sketch helps minimize interference with other components and reduces manual adjustments, making routing faster and more efficient. Automatically generated guidelines following the shortest possible path between end connectors Redirected guidelines following a route path To redirect guidelines to follow a route path: Create a 2D or 3D sketch that leads to the appropriate end connector. Click Tools > Electrical > Routing > Auto Route. Under Routing Mode, select Guidelines. Select Follow Routing Path. To ensure accurate results, use Follow Routing Path before merging wires. In the graphics area, select sketches to use as route paths. A preview of the guidelines, aligned with the selected sketch, displays in the graphics area. Click Done.The sketches representing the route path appear in the FeatureManager design tree as Routing_pathn. Click . Parent topicAuto Route Auto Route PropertyManager Discrete Wires with Auto Route
