The SOLIDWORKS PDM Administration tool includes enhancements for the
convert task options for
Parasolid™,
ACIS™, and
eDrawings® file format.
The enhancements are:

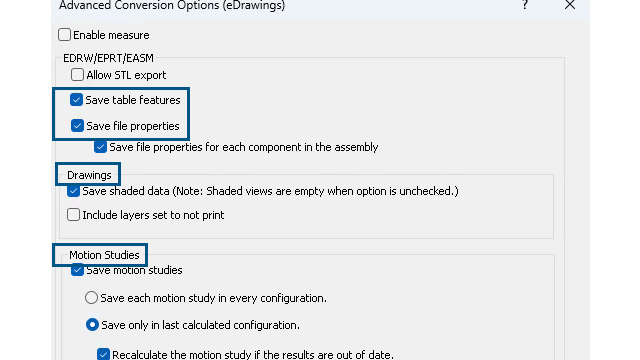

- A modified user interface for the eDrawings file format similar to the
SOLIDWORKS export for better clarity and usability. For example, the existing
options are grouped under sections and the following options are added:
- Save table features
- Save file properties
- Support
of higher versions for Parasolid (up to
35.1) and ACIS (up to 33.0) file formats.
- A new
eDrawings Web HTML (*.html)
option
under
Output file format.
The
user interface of the Advanced Conversion
Options dialog box
for
this new option
is
similar to eDrawings
options
(All
options
are
unmodifiable
except Enable
measure).
- Ability
to
change the output path or file name in the Draftsight
to PDF and Office to PDF
tasks
using
the
Advanced
Scripting
Options.
