Creating Rotated Move Face Features

  1. Rotate the model and select the face shown.

  2. Select Move Face (Direct Editing CommandManager tab).

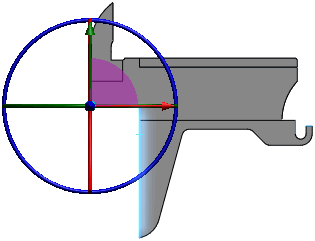

  3. Click Front (Standard Views toolbar).

  4. Drag the blue-colored triad ring to rotate the face.

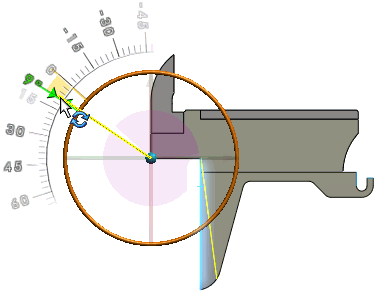

    In the PropertyManager, Rotate is selected under Move Face. A protractor appears to help you rotate the face by a discrete angle. A preview of the rotated face appears.

  5. Click .

    You can use the triad to edit a Move Face feature (Translate or Rotate type) that was created with Instant3D triad. The triad appears when you select the feature in the graphics area.
