Multi-jog Leaders

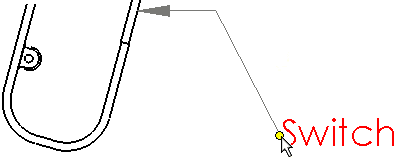

You can use multi-jog leaders in drawings to create leaders with as many bends as required, or to create simple arrows or block diagrams. For example, a multi-jog leader can point a note to an entity in a drawing that is difficult to reach with a straight or bent leader. Some items to note about multi-jog leaders are as follows:
-
You can attach multi-jog leaders to annotations, sketch entities, or model edges or faces, or you can insert a leader without attaching it to anything.
-
A preview of each segment of the leader appears as you move the pointer.
-
You can add jog points and branches to multi-jog leader segments.
-
You can start a multi-jog leader anywhere on a drawing sheet. You can end a leader anywhere on a drawing sheet by double-clicking. When a leader is not attached to an entity, the arrow at the endpoint follows the Unattached option in
Document Properties - Annotations
. You can manually select a different arrow at the endpoint with a shortcut menu.
-
You can add multi-jog leaders as you create the annotations or after you create them.
To create a multi-jog leader:
To add a multi-jog leader while creating an annotation:

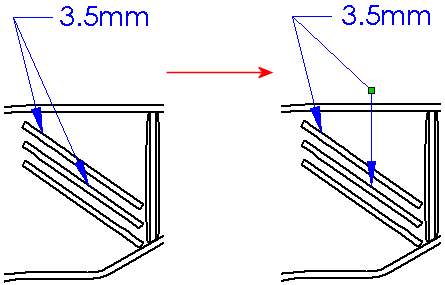

To add a jog point:

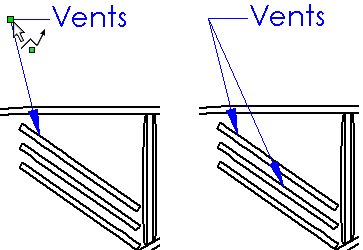

To add a branch:
To change the arrow at an endpoint:
To change a straight leader to a multi-jog leader:
To delete a multi-jog leader:
To delete a jog point:
To delete a branch:
