Fillet Surface

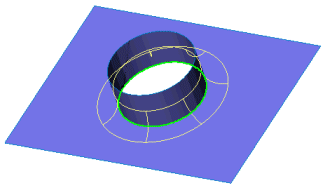

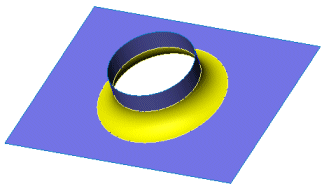

You can use a fillet to smooth the edge between two adjacent faces in a surface body that meet at an angle.

Select a Partial preview, a Full preview, or No preview in the Fillet PropertyManager. You can preview all fillet types.

Surface filleting works the same as filleting solid bodies with a few exceptions.

You can do the following:

• Fillet the edges of a surface body.

• Make multiple radius surface fillets.

• Make fillets between two surfaces, or face fillets.

• Add setback parameters to the surface fillets.

• Make surface fillets with hold lines.

• Trim or keep the filleted surfaces in a face fillet.

• Make a variable radius fillet on a surface .

• Click Reverse Face Normal for a face set to reverse the fillet direction.

You cannot do the following:

• Preserve a cut in a surface body with the Keep features option.

• Select a surface to fillet by feature from the FeatureManager design tree.

To fillet edges on a surface body:

1. Click Fillet on the Features toolbar or Insert, Surface, Fillet/Round.

2. Set the PropertyManager options.

3. Click OK .
