Insert Spline Point
The Insert Spline Point command adds one or more points to splines.
With spline points, you can:
-
Use spline points as handles to pull the spline into the shape you want.
-
Add dimensions between spline points or between spline points and other entities.
-
Add relations
to spline points.
To insert spline points:
-
In Edit Sketch mode, right-click a spline and select Insert Spline Point, or click Insert Spline Point
(Spline Tools toolbar).

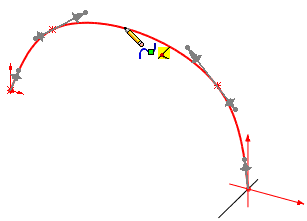

The pointer changes to
. If the pointer is not on the spline, the pointer changes to
.
-

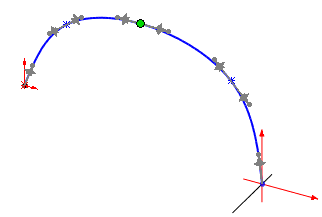

Click one or more places on the spline where you want to insert a point.
To delete spline points:
In an open sketch, select a point and press Delete.
