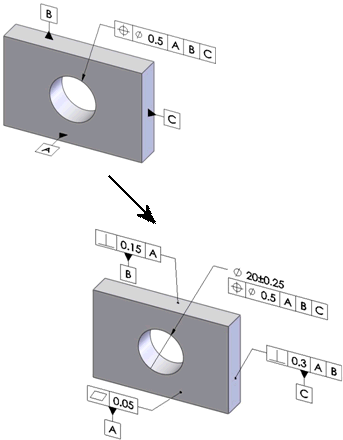

Using DimXpert to Apply a Geometric Tolerance

To use DimXpert to apply a geometric tolerance:

  1. Click Geometric Tolerance (DimXpert toolbar) or Tools > DimXpert > Geometric Tolerance.
  2. Select the geometric characteristic.
  3. Apply the tolerance information and datums as required.
  4. Select a feature and place the annotation.

    You can also pre-select a feature.

  5. Click OK.

    You can also set geometric tolerance attachment options.
