Creating the Submodeling Study

You create a submodeling study that contains only the bodies of the supporting frame.

  1. Run the Ready-Pressure study with the default mesh settings.
  2. After the analysis completes, right-click Ready-Pressure and click Create Submodeling study.

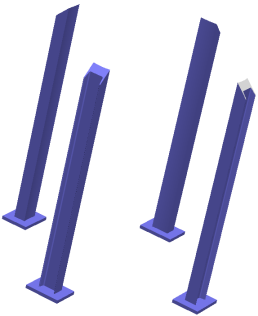

  3. From the list of bodies to include in the submodel, select the four supporting legs and four plates for a total of eight bodies.


  4. Click PM_OK.gif.

    Study Submodel-1 is created. The displacement field from the parent study is transferred to the submodel at the cut boundary.
