Circular Note Pattern

You can display notes in a circular pattern in drawings.

To create a circular pattern of the note:

  1. Select the note.
  2. In a drawing view, click Circular Note Pattern (Annotations toolbar) or Insert > Annotations > Circular Note Pattern .
  3. In the PropertyManager, under Parameters:

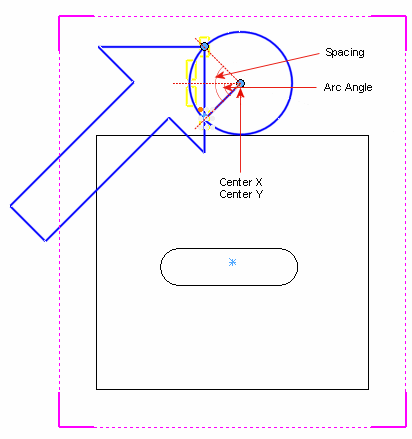

    • To set a pattern center other than the center of the drawing view, in Center X arc_cen_x.png and Center Y arc_cen_y.png, set the values. You can also drag the selection point to set the center of the pattern.
    • Set Spacing to specify the total number of degrees in the pattern. You can also set the spacing in the graphics area .
    • Select Equal spacing to pattern equidistant instances.
    • Set Number of Instances pattern_circular_count.png to the total number of notes to create. You can also set the number of instances in the graphics area .
    • Set Radius dim_rad.png to specify the radius of the pattern. You can also drag the selection point to set the radius .
    • Set Arc Angle to specify the angle that is measured from the center of the selected note to the center point or vertex of the pattern.
    • Click Reverse Direction flip_rot.png to create the pattern in the opposite direction along the circle. You can also reverse direction in the graphics area by clicking the handle .
      You can change the radius and set the center of the pattern in the graphics area by dragging the selection point .
      Initial note Circular note pattern
      Edited circular note pattern
  4. Click .
  5. After you create the pattern, you can edit the notes individually.
