Animation Timeline and Controls

This section describes the animation timeline and controls.

The animation timeline and controls are available only in SOLIDWORKS Visualize Professional.

To display the animation timeline, click View > Show Timeline.

The controls remain on the screen until you clear View > Show Timeline or press the spacebar to enter Easy Mode.

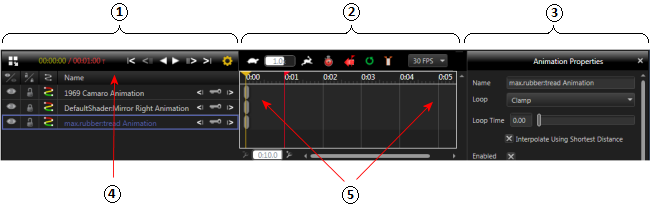

The following figure shows the animation timeline and controls.

1 Basic animation controls
2 Advanced animation controls
3 Animation Properties
4 Animation list
5 Timeline
