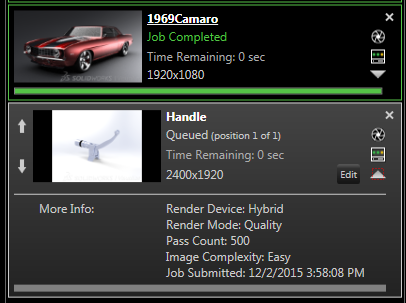

| Thumbnail |
Shows a thumbnail of the scene to be rendered. The thumbnail updates every 5% of total progress, or every 15 seconds (whichever happens sooner). |
| Title |
Shows the file name of the job. When a job is complete, click the file name to launch the finished result.
|
| Status |
Shows the status of the queued job:
| Job Complete |
Indicates the job finished successfully. |
| Rendering |
Indicates the job is processing. |
| Queued |
Indicates the job is waiting in the queue and lists the order of the job in the queue. |
| Failed |
Indicates the job failed to process. |
|
| Elapsed time Time Remaining
|
Lets you change between the elapsed time since the job started processing and the estimated time remaining before completion. |
| Resolution |
Shows the pixel size of the job. |
| Job type icon |
Indicates the type of job:
 |
Single Frame |
 |
Animation |
 |
Turntable |
 |
Sun Study |
|
| More Info |
Click  to display additional information about the job:
| Render Device |
Lists CPU Only, GPU Only, or Hybrid, depending on the Render Using setting in the Output Tools dialog box. |
| Refine Mode |
Indicates the render mode of the job: Quality or Time Limit. |
| Time Limit or Pass Count |
Shows either the time limit that you set at the start of the render, or the number of frames that have been processed, depending on the job type. |
| Image Complexity |
Indicates whether the scene is easy, moderate, or difficult to render. |
| Job Submitted |
Shows the date and time you submitted the job to the queue. |
|
| Status bar |
Gives a visual estimate of the progress of the rendering job. |
| Edit |
(Available when a job is in the queue.) Displays the Edit Render Job dialog box, where you can modify render settings before the job begins rendering.
|
