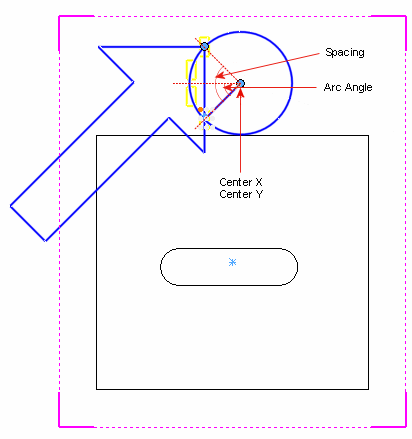

Circular Note Pattern You can display notes in a circular pattern in drawings. To create a circular pattern of the note: Select the note. In a drawing view, click Circular Note Pattern (Annotations toolbar) or Insert > Annotations > Circular Note Pattern . In the PropertyManager, under Parameters: To set a pattern center other than the center of the drawing view, in Center X and Center Y , set the values. You can also drag the selection point to set the center of the pattern. Set Spacing to specify the total number of degrees in the pattern. You can also set the spacing in the graphics area . Select Equal spacing to pattern equidistant instances. Set Number of Instances to the total number of notes to create. You can also set the number of instances in the graphics area . Set Radius to specify the radius of the pattern. You can also drag the selection point to set the radius . Set Arc Angle to specify the angle that is measured from the center of the selected note to the center point or vertex of the pattern. Click Reverse Direction to create the pattern in the opposite direction along the circle. You can also reverse direction in the graphics area by clicking the handle . You can change the radius and set the center of the pattern in the graphics area by dragging the selection point . Initial note Circular note pattern Edited circular note pattern Click . After you create the pattern, you can edit the notes individually. Parent topicCreating Note Patterns Related tasks Linear Note Pattern Related reference Linear Note Pattern PropertyManager Circular Note Pattern PropertyManager
