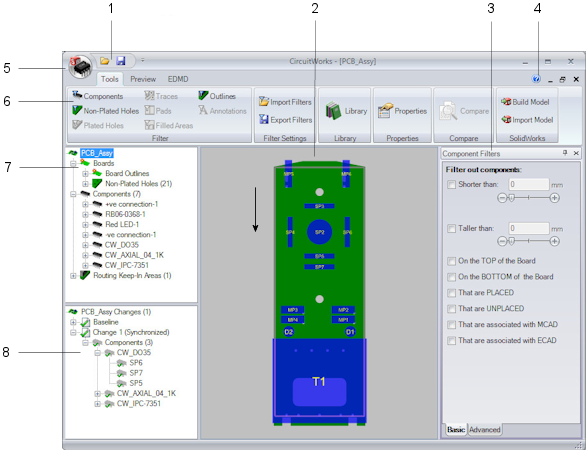

When you open an ECAD file from SOLIDWORKS, the CircuitWorks application appears. Use this interface to open, compare, and save ECAD files, filter features to reduce complexity, modify ECAD properties, and build SOLIDWORKS part and assembly models.
1 |
QuickAccess Toolbar |
5 |
Application Menu |
2 |
Preview image |
6 |
Toolbar |
3 |
File or Properties Panel |
7 |
Tree View |
4 |
Tab-level Help |
8 |
CircuitWorks Changes Tree (ProStep EDMD) |
