Create and Place Sub-Balloons

When a characteristic refers to multiple instances of a feature, you can add multiple balloons to the drawing to identify each instance.

For example, this radius refers to two fillets:

To add multiple balloons:

1. In the Table Manager:
   1. Create a line for each instance.
   2. Right-click an instance and click Create and Place Sub balloons.
2. Click anywhere in the document to place additional balloons.

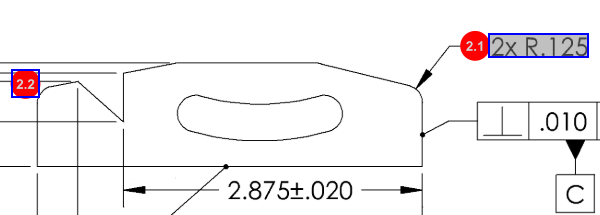

   In this example, you add balloon 2.2. Balloon 2 automatically changes to 2.1.
