After inserting a hole
table, you can edit the hole table tags.
Formatting Hole Table Tags
- Select a tag.
- Set options in the Note
PropertyManager.
- Click
.
Editing Hole Table Tag Numbers
Double-click in the tag cell in the hole table or double-click the
hole label annotation in the drawing view.
Renumbering All Hole Table Tags
In the graphics area or the FeatureManager design tree, right-click the hole table
and click Renumber All Tags.
Renumbering a Series of Hole Table Tags
In the hole table, right-click any row in the series and click Renumber Series.
 |

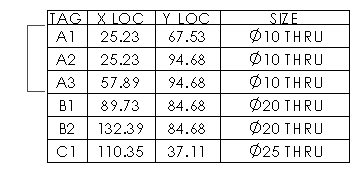

| Before renumbering series |
 |

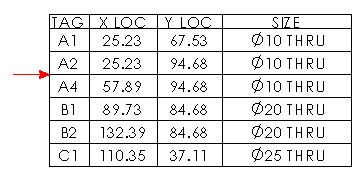

| After renumbering series |
